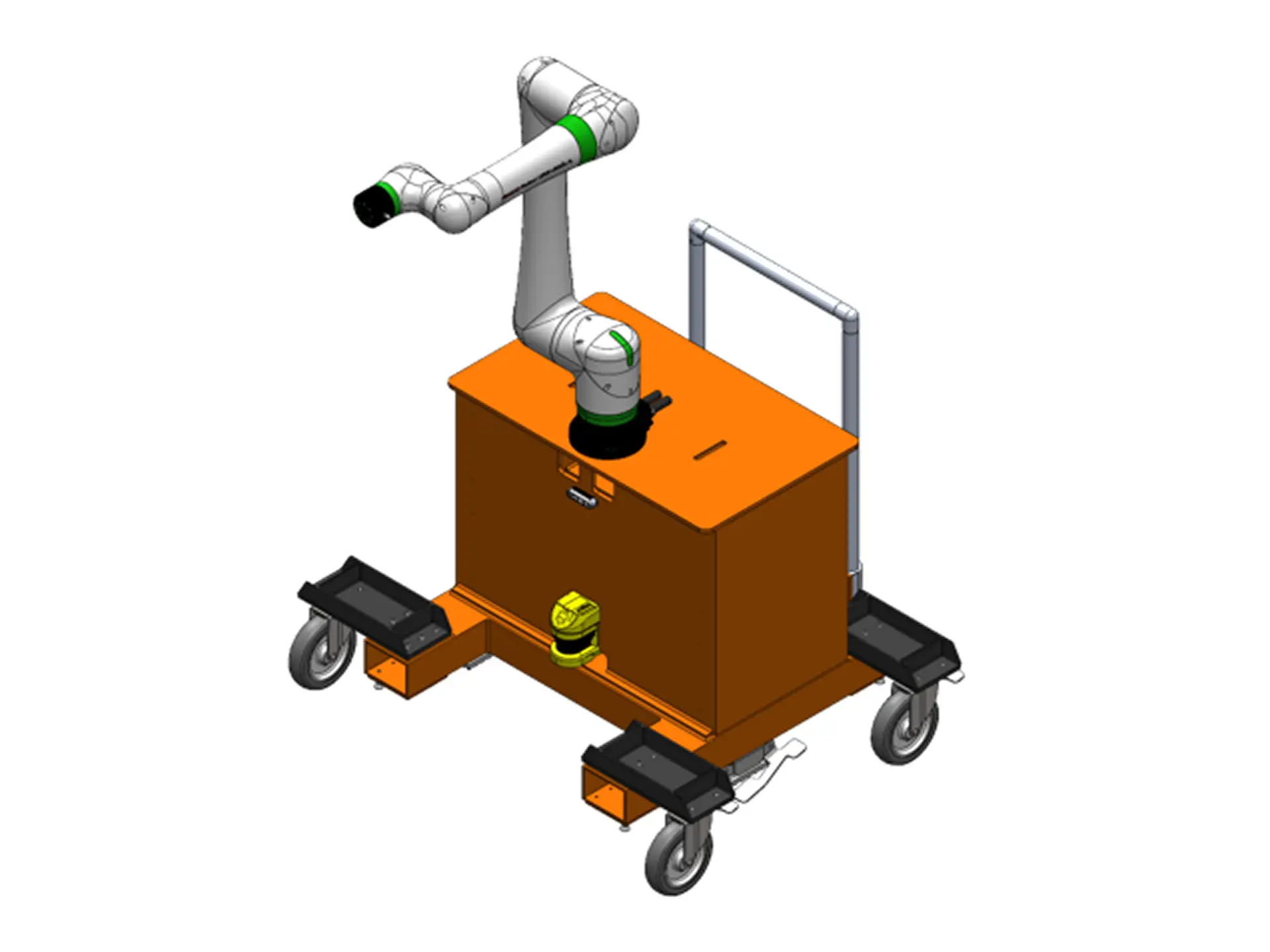

WS1000
Designed for operator collaboration and simplicity
The WS1000 Agile Manufacturing Robot is a configurable automated solution that reduces production cost and increases worker productivity by combining robotics, advanced end-effectors, automation, and smart mobile platforms into a powerful manufacturing solution — without disrupting production. Applications utilizing this technology include surface preparation, ice-blast cleaning, and jig-template drilling.
Technical Specifications
Download the full datasheets and schematics.
KEY FEATURES
Drilling and countersinking with a modular end-effector
Handles 3/4″ CF/AL stacks with a 1″ concentric collet
Drills 5/16″ holes with 0.0015″ repeatability
Collaborative Fanuc CRX-10iA/L robot with programmable axis limits
Tablet teach pendant HMI for quick system feedback
Mobile caster wheels with manual stabilizing feet
Runs on standard 100–120 VAC shop power
Quiet operation under 65 dB(A)
SYSTEM SPECIFICATIONS
Robot Model
Fanuc CRX-10iA/L
Maximum Load Capacity (At Wrist)
22 lbs
Reach
55″
Controlled Axes
6 rotating joints
Repeatability
0.0015″
Average Power Consumption
350–615 W
Robot Control Unit
Fanuc R-30iB Mini Plus
HMI
Tablet teach pendant
Positioning to Fixture
Mobile caster wheels
Lifting & Lowering
Manual stabilizing feet
Safety
Collaborative safety features, connected E-stop
Electrical Requirements
100–120 VAC
Compressed Air
80 PSI / 0.7 SCFM
Data Connection
Ethernet
Protection (Arm /Control Box)
IP67 / IP67
Noise Output
<65 dB(A)
Dimensions (L x W x H)
54″ x 27″ x 64″
Weight
250 lbs
Ready to integrate WS1000?
Our engineering team is ready to evaluate your facility and design a custom implementation plan.
