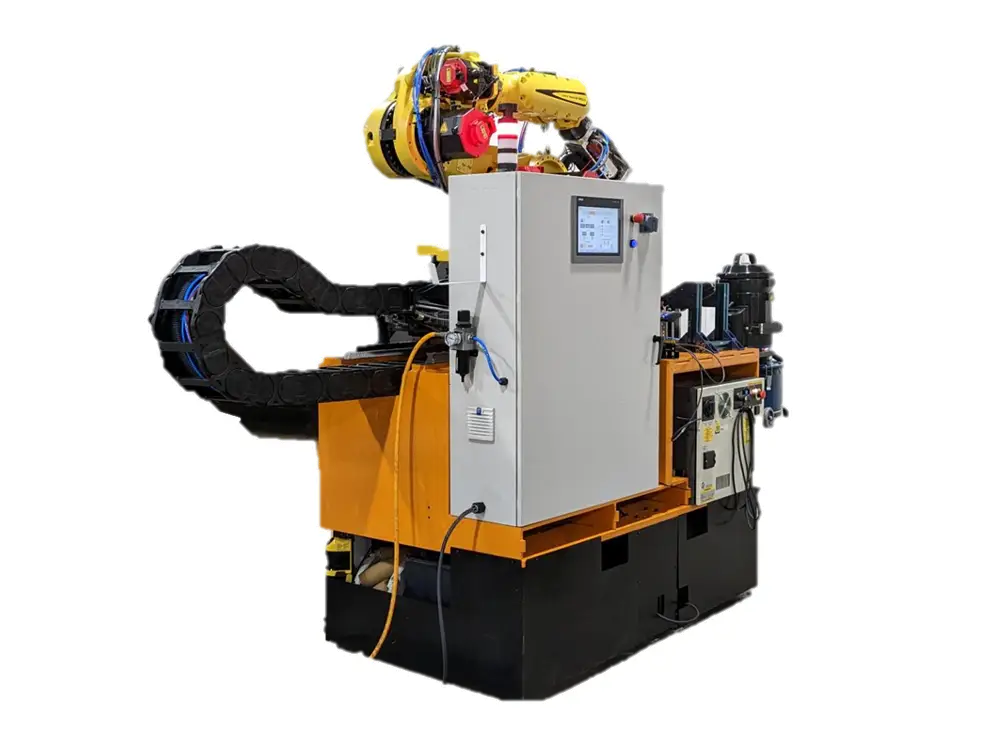

WS2000
Designed for tight-access navigation andaccuracy
The WS2000 is a configurable automated solution that reduces production cost and increases worker productivity by combining intelligent robotics, modular end-effectors, and smart mobile platforms into a powerful manufacturing solution — without disrupting production. It delivers scrap rate reduction, cycle time improvements, and ergonomic injury reduction with no required facility modifications.
Technical Specifications
Download the full datasheets and schematics.
KEY FEATURES
Advanced drilling and countersinking
De-fastening, aircraft washing, and non-destructive inspection
De-painting, de-icing, and surface preparation
Computer vision system with automatic work-piece docking
Automated tool changing from modular tool storage
Omni-directional mobility for tight-access navigation
7th-axis linear rail for extended reach and faster cycle times
No required facility modifications
SYSTEM SPECIFICATIONS
Robot Model
Fanuc M-800iA/60
Maximum Load Capacity
130 lbs (60 kg)
Controlled Axes
7 (with rail system)
Repeatability
0.0012″ (0.030 mm)
Average Power Consumption
2.0 kW
Robot Control Unit
Fanuc R-30iB
PLC Controller
Siemens S7-1512FC
HMI
Siemens TP1200 Comfort Panel
Mobility
Omni-directional wheels
Lifting & Lowering
Hydraulic actuators
Dimensions (L x W x H)
6 ft x 3.3 ft x 6 ft
Work Envelope (L x W xH)
10 ft x 3.5 ft x 10 ft
Electric
480V / 3ph / 20A / 60 Hz
Compressed Air
90 PSIG
Data Connection
Ethernet
Ready to integrate WS2000?
Our engineering team is ready to evaluate your facility and design a custom implementation plan.
